Solid-Aluminum Replacement Knobs for Benchmark Products

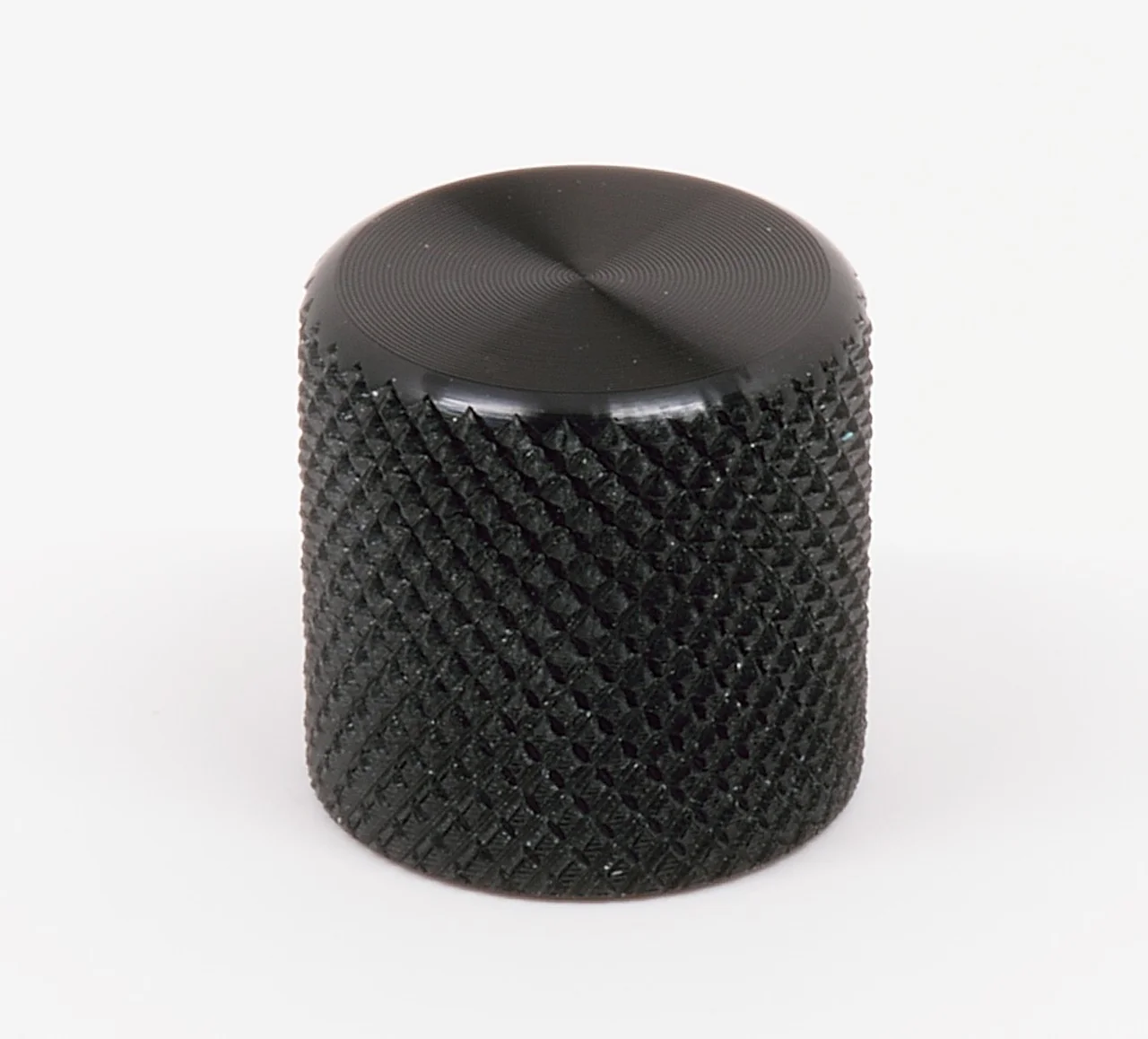

Benchmark knobs are precision machined from solid aluminum. Exact original replacements for worn or damaged knobs. These are custom parts - available only from Benchmark.

15.5mm Knob Without Dot - Press Fit

• DAC1 PRE - Source Selector
• DAC1 PRE V.2 - Source Selector
• DAC1 HDR - Source Selector

15.5mm Knob With Dot - Press Fit

• PRE 420 - Pan Pot
• PRE 420 - Monitor Volume Control

19.2mm Knob With Dot - Press Fit

• ADC1 - Chanel Gain
• MPA1 - Headphone Control
• PRE 420 - Chanel Gain
• PRE 420 - Main Volume Control

19.2mm Knob With Dot - Setscrew

• MPA1 - Chanel Gain

23.6mm Knob With Dot - Press Fit

• DAC1 - Volume Control
• DAC1 USB - Volume Control
• DAC1 PRE - Volume Control

23.6mm Knob With Dot - Setscrew

• DAC1 PRE V.2 - Volume Control
• DAC1 HDR - Volume Control
• DAC2 HGC - Volume Control
• DAC2 D - Volume Control
• DAC2 L - Volume Control
• DAC3 HGC - Volume Control
• DAC3 D - Volume Control
• DAC3 L - Volume Control

32.3mm Knob Without Dot - Setscrew

• HPA4 - Volume Control
• LA4 - Volume Control

Notes

Setscrew knobs are designed to fit a flatted 1/4" round shaft. A standard 1/16" hex key is required to loosen or tighten the knob. Make sure the set screw is tightened against the flatted side of the shaft. The tool is sold separately.

Press-fit knobs are designed to fit on a 1/4" splined shaft. These knobs will take a fair amount of force to remove. Pull straight off, do not use tools.

Select the size and type required for your application before adding to cart.
